Models

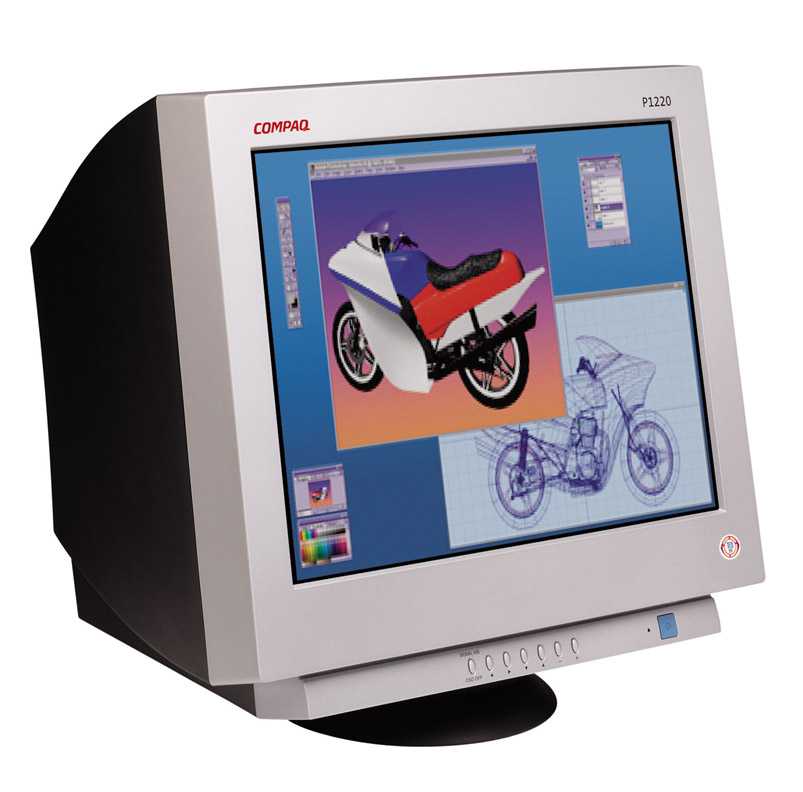

Compaq P1220 CRT Monitor
244374-xxx
NOTE: AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent Manageability.


Specifications
Picture Tube (diagonal)
22-inch DIAMONDTRON NF CRT
Viewable (diagonal)
20-inch (51cm)
Type
Color auto- scanning with Digital Control
Dot Pitch
0.24 mm Aperture Grille Pitch
Graphic Preset Modes
1920 x 1440 80 Hz/60 Hz, 75 Hz
1792 x 1344 85 Hz/60 Hz, 75 Hz
1600 x 1200 95 Hz/75 Hz,85 Hz
1280 x 1024 110 Hz/60 Hz,75 Hz, 85 Hz
Mac Compatible Modes: 1152 x 870

User-Programmable Modes
18 (9 Preset Modes and 9 Preloads)
Anti-Glare/Anti-Reflection/Anti-Static Yes/Yes/Yes
Plug and Play Yes
Plug and Play Protocol DDC1/2B
Dual Video Inputs Yes

MPR-II (Low Emissions) Yes
TCO-99 Yes
Energy Star Compliant Yes
UL Listing Yes
ISO9241-3 VOT Guidelines Approval Yes
FCC Approval Yes
CE Mark (including PFC) Yes
GS Mark Yes

User Controls
Sizing and Positioning Yes
Pincushion Yes
Pincushion Balance Yes
Trapezoid Yes
Tilt (rotation) Yes
Color temperature Yes
Degauss Yes
Parallelogram Yes
Individual color contro Yes
Zoom Yes
Moiré Cancellation Yes
Convergence Yes
Factory Reset Yes
Corner Purity Adjustment Yes
AssetControl Yes


NOTE: When used with Compaq Intelligent Manageability CPUs and appropriate network software.
Pixel Clock Frequency (maximum)
340 MHz (2048 x 1536, 75 Hz, 120 kHz)

Input Impedance 75 ohms
Horizontal Frequency 30 to 130 kHz
Vertical Frequency 50 to 160 Hz
Power Supply 90 to 260 VAC
Maximum Power Rating 155 W
USB Capabilities Built-in; 1 upstream, 3 downstream
Synchronized Input Separate H, V synchronized
Signal Cable Detachable 15-in D-sub to 15-pin D-sub cable. Two D-sub connectors on monitor
Maximum Phosphorus Size 16 x 12 in/406.1 x 304.6 mm (20 in/507.6 mm diagonal)
Dimensions (H x W x D) 19.7 x 19.7 x 19 in/500 x 500 x 482 mm
Weight 66 lbs/30 kg
Operating Temperature 50° to 95° F/10° to 35° C
Non-operating –4° to 140° F/–20° to 60° C
Operating Humidity 20% to 80%
Non-operating 10% to 95%
Warranty Three-year parts, three-year on-site labor, or next business day direct replacement
