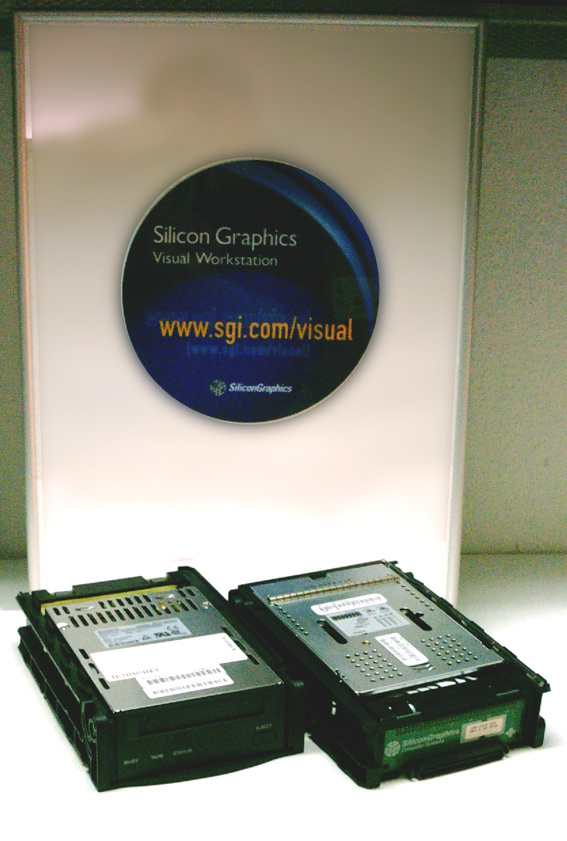

SGI DDS3 DAT Laufwerk im original Einschub für Octane

SGI  P/N 013-2282-001

Kapazität 24 GB (komprimiert)

SDT-9000

Three Times the Capacity of DDS-2
With up to 24 GB Capacity (2:1 data compression) per 125 m DDS-3 data cartridge, the SDT-9000 provides a compact, cost-effective solution to the backup storage needs of data intensive systems.

High Speed Data Transfer
The increased linear density of the SDT-9000 combined with Sony-original LSIs and a precise tape control system delivers a sustained data transfer rate of 2.4 MB/s (with 2:1 data compression). It provides a capacity to transfer rate ratio of 10,000:1, making it possible to meet the requirements of MIS managers for a shorter backup time.

Enhanced Reliability
The implementation of the new Hyper MetalT head can read back data at a higher signal output amplitude than the conventional ferrite heads used in DDS-2 drives. The signal-to-noise ratio is increased and the error correction rate is also greatly improved.

Super Head CleanerT Mechanism
Sony's patented Super Head Cleaner mechanism prevents particle accumulation on the heads to minimize read/write errors.
Three Times the Capacity of DDS-2
With up to 24 GB Capacity (2:1 data compression) per 125 m DDS-3 data cartridge, the SDT-9000 provides a compact, cost-effective solution to the backup storage needs of data intensive systems.

High Speed Data Transfer
The increased linear density of the SDT-9000 combined with Sony-original LSIs and a precise tape control system delivers a sustained data transfer rate of 2.4 MB/s (with 2:1 data compression). It provides a capacity to transfer rate ratio of 10,000:1, making it possible to meet the requirements of MIS managers for a shorter backup time.

Enhanced Reliability
The implementation of the new Hyper MetalT head can read back data at a higher signal output amplitude than the conventional ferrite heads used in DDS-2 drives. The signal-to-noise ratio is increased and the error correction rate is also greatly improved.

Super Head CleanerT Mechanism
Sony's patented Super Head Cleaner mechanism prevents particle accumulation on the heads to minimize read/write errors.





Model Overview

24 GB Capacity DDS-3 Internal Drive

Model Highlights:

• 24 GB capacity and 2.4 MB/s sustained data transfer rate (with 2:1 compression)

• Sony Hyper MetalT Head reduces error rate compared to conventional ferrite MIG heads

• Backward compatible to DDS-2 and DDS-1 format

• Sony's patented Super Head CleanerT mechanism reduces particle build-up on read/write heads

• High reliability with 200,000 POH MTBF at 20% duty cycle

Specifications


Capacity:
Media Maximum: 24 GB (Compressed)
Hardware Maximum: 24 GB (Compressed)
Native Capacity of Media: 12 GB
Native Capacity of Hardware: 12 GB
Linear Recording Density: 122,000 bpi
Recording Block Length: Variable or fixed length blocks

Transfer Rate:
Burst Transfer Rate: 5.0 MB/s (Async., Max.)
  10.0 MB/s (Sync., Max.)
Sustained Transfer Rate: 2.4 MB/s (Compressed)
  1.2 MB/s (Native)

Speed:
Access Time (Avg.): Less than 45 s (125 m data cartridge)
Search Speed: 200x nominal read/write speed (Approx.)
Drum Rotational Speed: 4,252 rpm

Buffer Memory: 2 MB

Reliability:
MTBF: 200,000 POH (20% duty cycle)
Uncorrectable Error Rate: Less than 10-15 bits

Physical Dimensions:
Dimensions (WxHxD): 4.0 x 1.62 x 5.75 inches
  101.6 x 41.2 x 146 mm
Weight: 1 lb 6 oz
  620 g

Mounting: Horizontal or Vertical

Power:
Power Requirements: DC 5 V +/- 5%
  DC 12 V +/- 10%
Power Consumption: 6.8 W (Typ.)
  Less than 10.5 W (Max.)

Enviromental:
Operating Temperature: 40° F to 104° F
  5° C to 40° C
Non-Operating Temperature: -40° F to 158° F
  -40° C to 70° C
Operating Humidity: 20% to 80% (non-condensing)
Maximum Wet Bulb Temperature: 79° F
  26° C
Shock: 5.0 G peak, half sine wave of 3 ms duration
Vibration: 0.25 G peak, 5 to 500 Hz (swept)
